Slotting Machine
Ajax Slotting Machines
Ajax slotting machines are designed for versatility and durability, used across a wide range of industries for cutting slots and keyways in components that are difficult or impossible to machine using other equipment. Robustly built and CE & UKCA marked for compliance and safety.
What machine should I cut a keyway with ? An Ajax Slotting Machine is the best way to cut a keyway. You can buy a slotting machine from Ajax.
How can I cut a serrated gear on a manual machine ? On an Ajax slotter with an indexing rotary table, it can cut gears, slots keyways.
Specifications.
| MODEL | AJSL100 | AJSL125 | AJSL200 | AJSL300 | AJSL350 |
| Stroke of Ram (mm) | 100 | 125 | 200 | 300 | 350 |
| Number of Speeds | 6 | 6 | 8 | 8 | 8 |
| Speeds of Ram (SPM) | 60 – 350 | 60 – 350 | 26 – 93 | 22 – 78 | 22 – 78 |
| TABLE | |||||
| Table Size (mm) | 800 x 240 | 800 x 240 | 400 Dia | 560 Dia | 560 Dia |
| Table Travel in X Axis (mm) | 500 | 500 | 250 | 460 | 460 |
| Table Travel in Y Axis (mm) | 240 | 240 | 250 | 460 | 460 |
| Table Rotation (Deg) | N/A | N/A | 360 | 360 | 360 |
| Max Distance Table to Ram (mm) | 300 | 365 | 470 | ||
| TOOLHEAD | |||||
| Max Tool Section (mm) | 16 x 16 | 16 x 16 | 20 x 20 | 25 x 25 | 25 x 25 |
| Tilt of the head (Deg) | + / – 45 | + / – 45 | 30 | 30 | 30 |
| SIZE & WEIGHT | |||||
| Size (cm) | 114 x 110 x 200 | 114 x 110 x 200 | 120 x 75 x 157 | 200 x 126 x 196 | 200 x 126 x 216 |
| Weight (Kgs) | 550 | 550 | 995 | 1,750 | 1,850 |

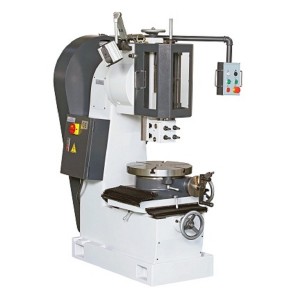

AJSL200 Slotting Machine
The AJSL200 is ideally sized for the average workshop and has been thoughtfully designed with practicality and performance in mind.
The machine features heavily ribbed internal castings, ensuring exceptional rigidity under maximum cutting conditions. Its well-proportioned slideways and table provide superior stability and support, delivering consistent precision and performance.

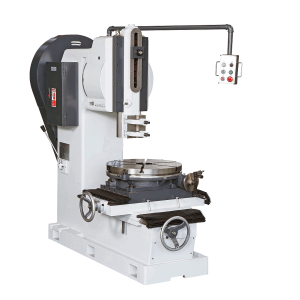

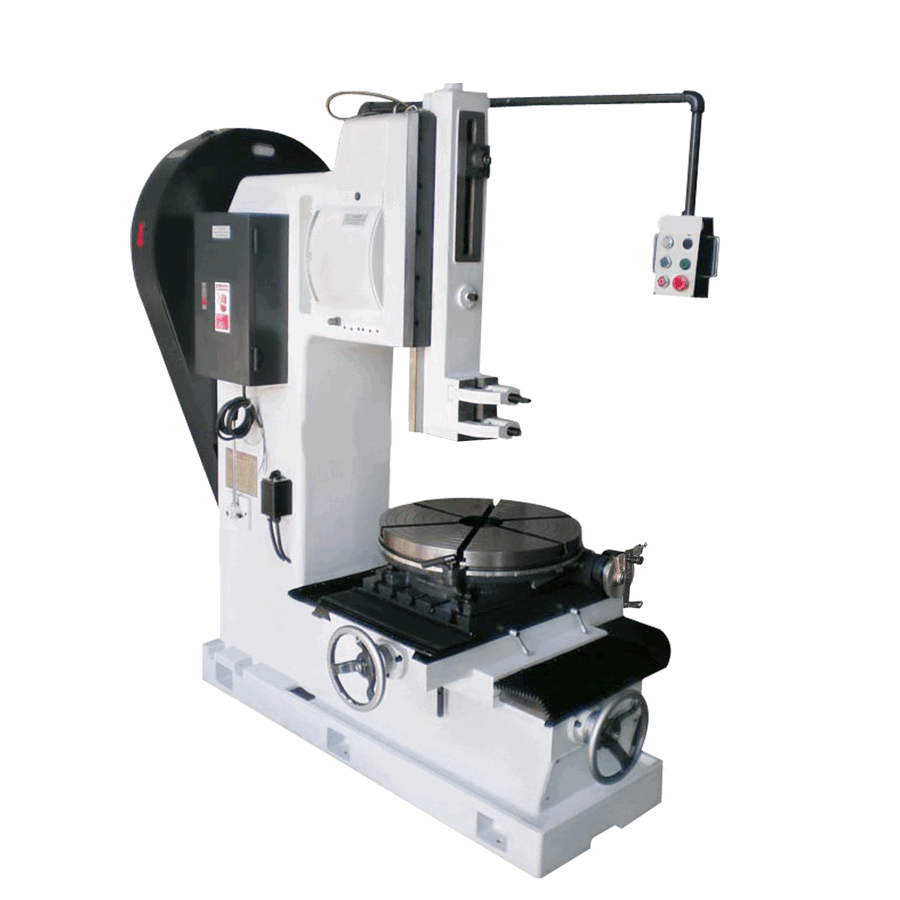

AJSL300 & AJSL350 Heavy Duty Slotting Machines
Our Ajax heavy-duty slotting machines are built to perform in demanding environments. The robust construction features a solid body mounted on a large, reinforced base to ensure maximum rigidity during heavy cutting operations.
The generously sized slideways provide excellent support and stability, while the rotary table offers full 360° rotation, allowing for greater flexibility and versatility across a wide range of applications.
