Mini CNC Milling Machine
AJAX Mini CNC Milling Machines – Compact Power, Built to Last
Our range of Ajax vertical mini CNC milling machine, commonly referred to as the Mini Mill, is built to an exceptional standard of quality. Designed for performance, reliability, and precision, these machines use only the best components from leading manufacturers such as Hiwin, SKF, and Schneider—because high quality isn’t optional, it’s essential.
Available with Siemens, Fanuc, Fagor or Masso CNC Control Options.
Prices from £ 16,950.00
Specifications.

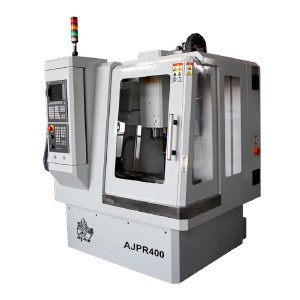

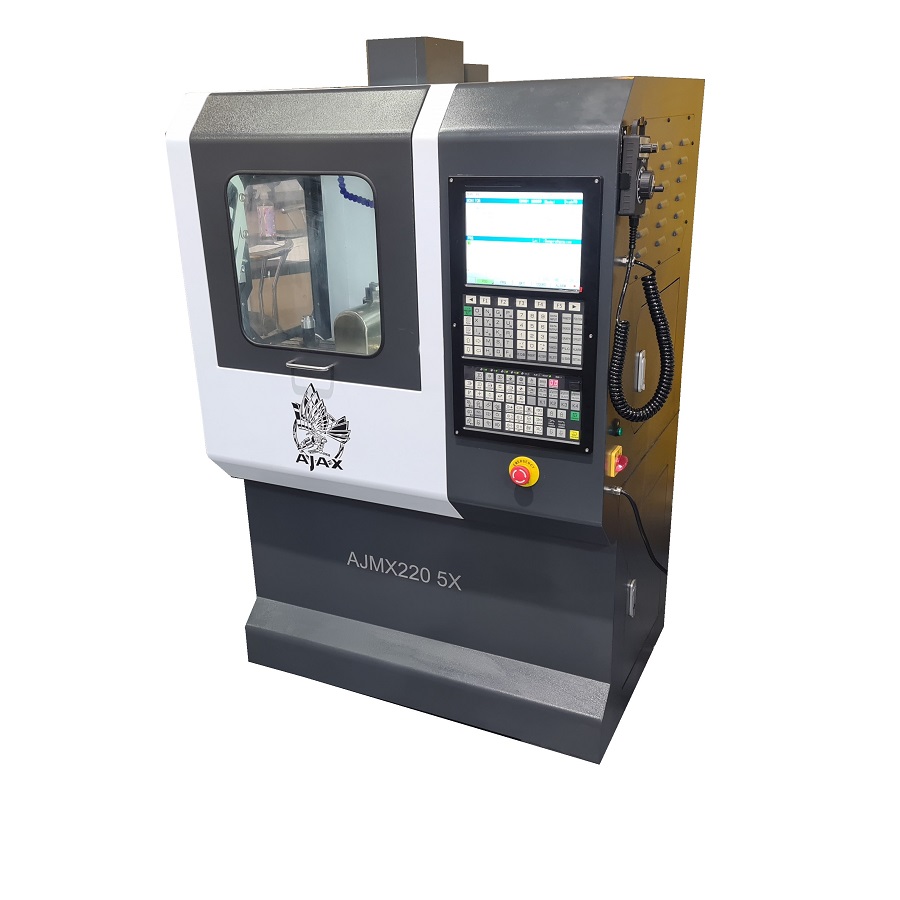

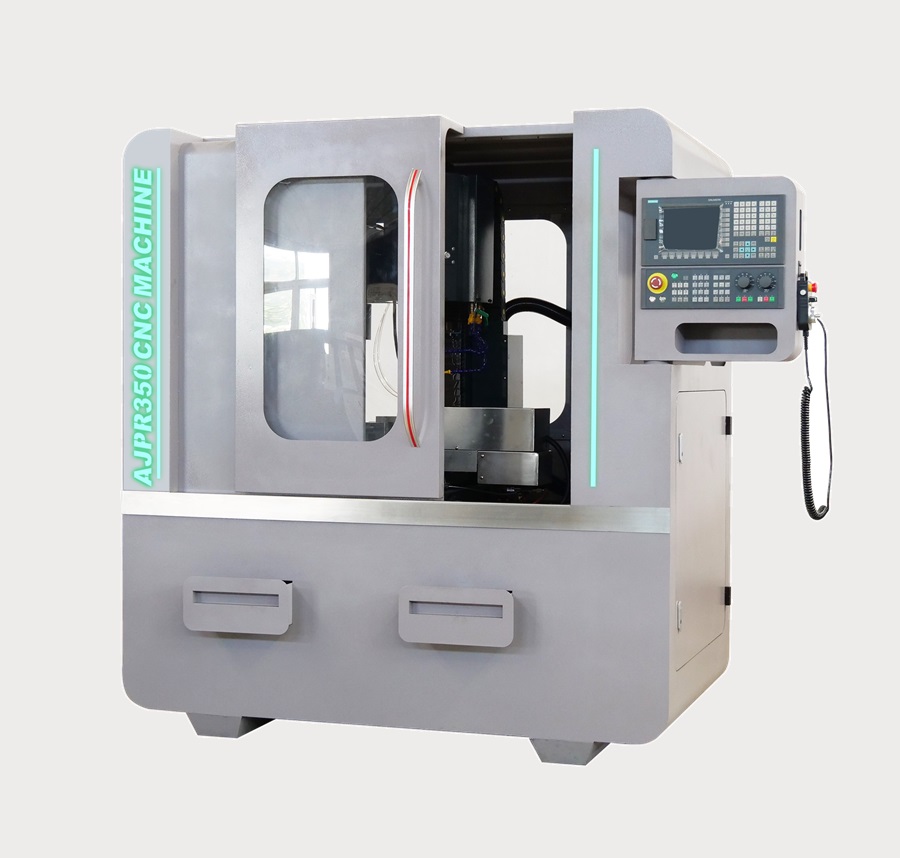

| Model | AJMX220 | AJPR220 | AJPR350 | AJPR400 |
| Table size (mm) | 430×130 | 400×140 | 600×163 | 700×210 |
| X Axis (mm) | 220 | 220 | 350 | 365 |
| Y Axis (mm) | 120 | 120 | 160 | 260 |
| Z Axis (mm) | 200 | 200 | 400 | 455 |
| Rapids (M/min) | 2 | 5 | 8 | 10 |
| Motors | ||||
| Main Motor Power (kW) | 0.75 | 1.1 | 3 | 3.7 |

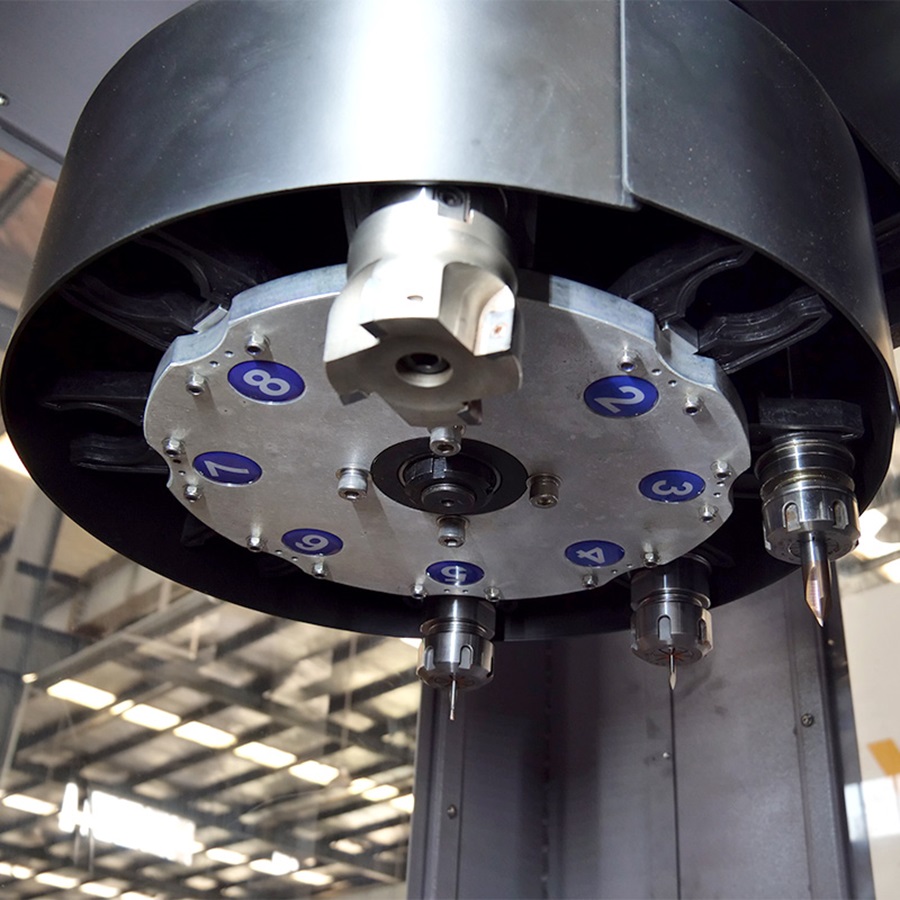

| Tool Changer | 4 as option | none | 8 | 12 |
| Max table loading (kg) | 25 | 75 | 150 | 200 |
| Machine Weight (kg) | 280 | 320 | 900 | 1300 |
| CNC Control | KY-1000MC | Siemens 808D | Siemens 808D | Siemens808D |
| Motors servo | stepper | AC Servo | AC Servo | AC Servo |
| Spindle | ||||
| Spindle | ER25 or MT3 | ER25 | BT30 | BT30 |
| Spindle (rpm) | 3500 or 24000 | 3000 | 18000 | 8000 |
| Power Supply | 240v 1ph | 240v 1ph | 240v 1ph or 415v 3ph | 240v 1ph or 415 3ph |
| Overall Size (mm) | 930x670x1450 | 1250x750x1850 | 1800x1050x2050 | 1450x1450x2350 |
Videos of machine’s running
Flexible Programming – ISO G-Code or Conversational

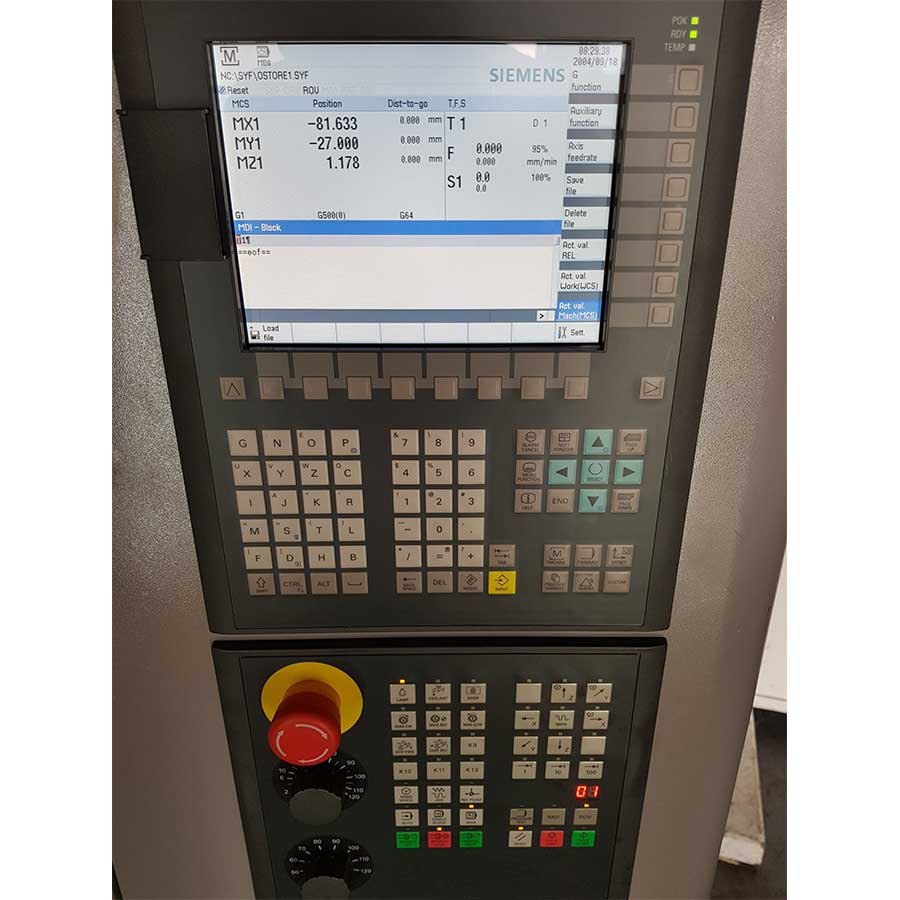

The Siemens 808D control allows programming directly in standard ISO G-Code or through an intuitive conversational interface, making it ideal for a wide range of users—from beginners in training environments to skilled machinists in workshops.
This makes the 808D a versatile and cost-effective control system that balances performance with usability.
Whether you’re outfitting a classroom, garage, or professional workshop, our experienced Ajax team is here to advise you on the best setup to suit your needs.
Expand Your Capabilities with Custom Options

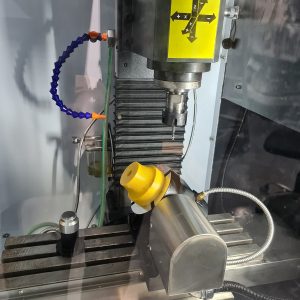

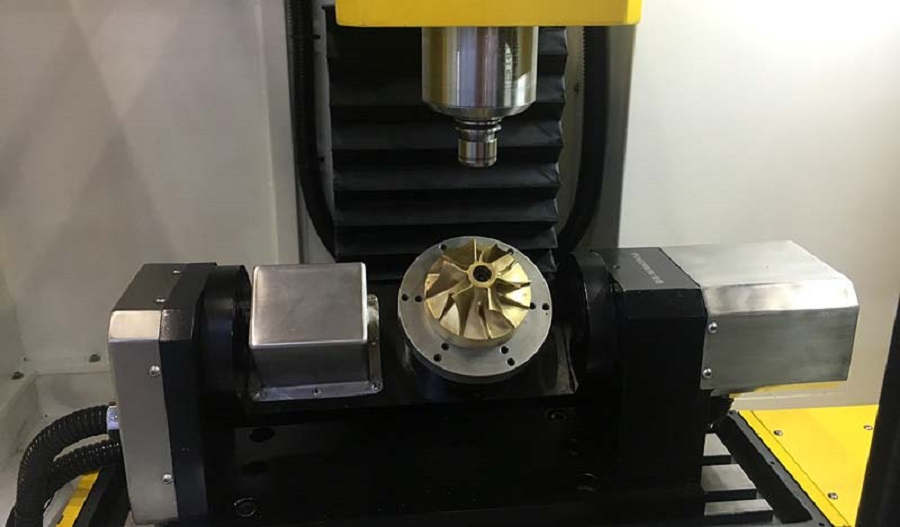

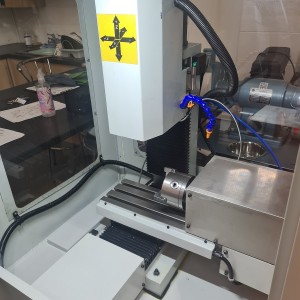

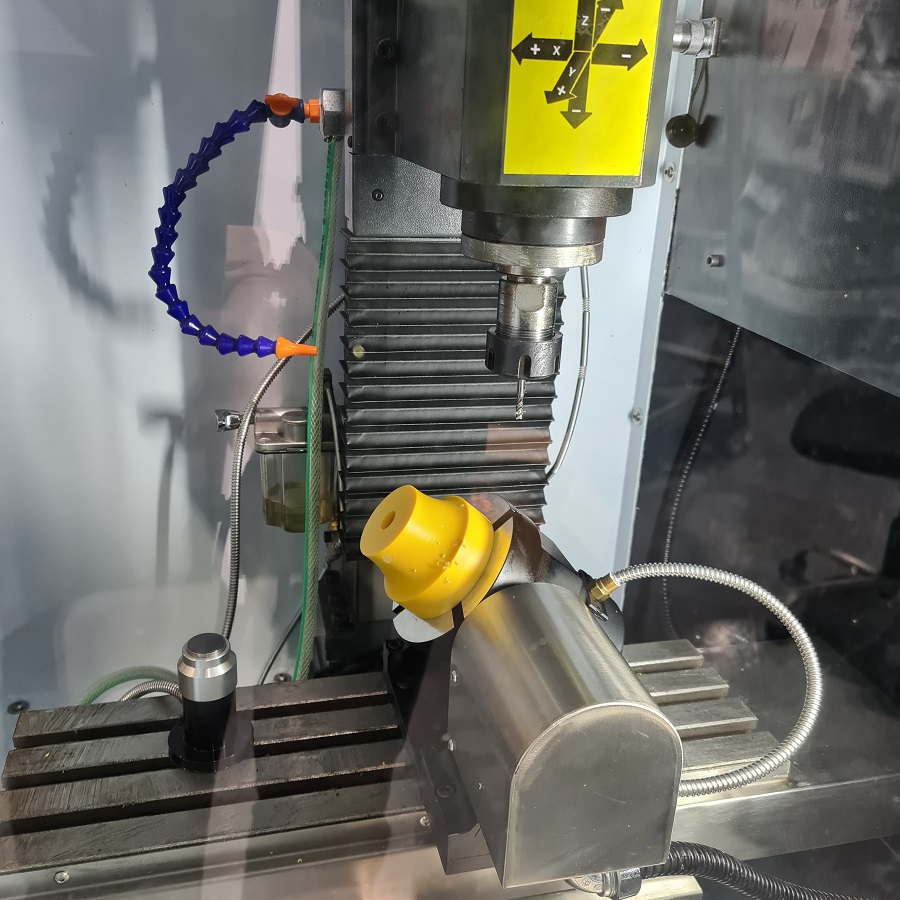

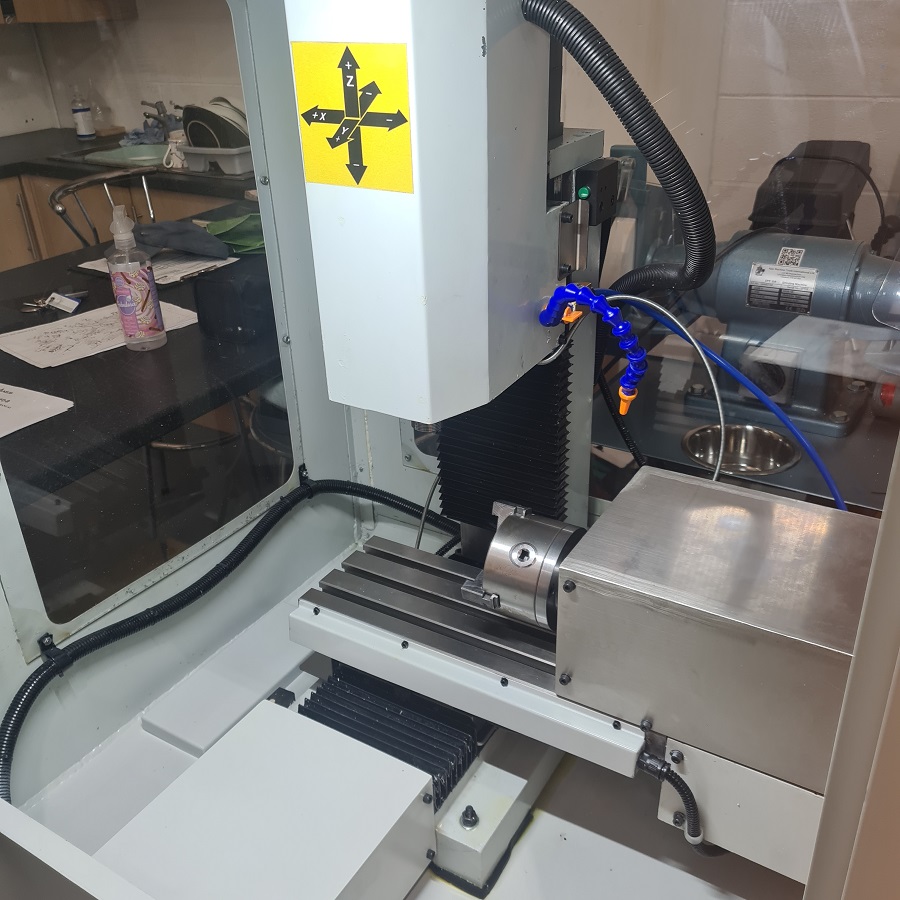

All models in the Ajax Mini CNC range are available with a 4th axis option, enabling more complex machining operations and increased versatility.

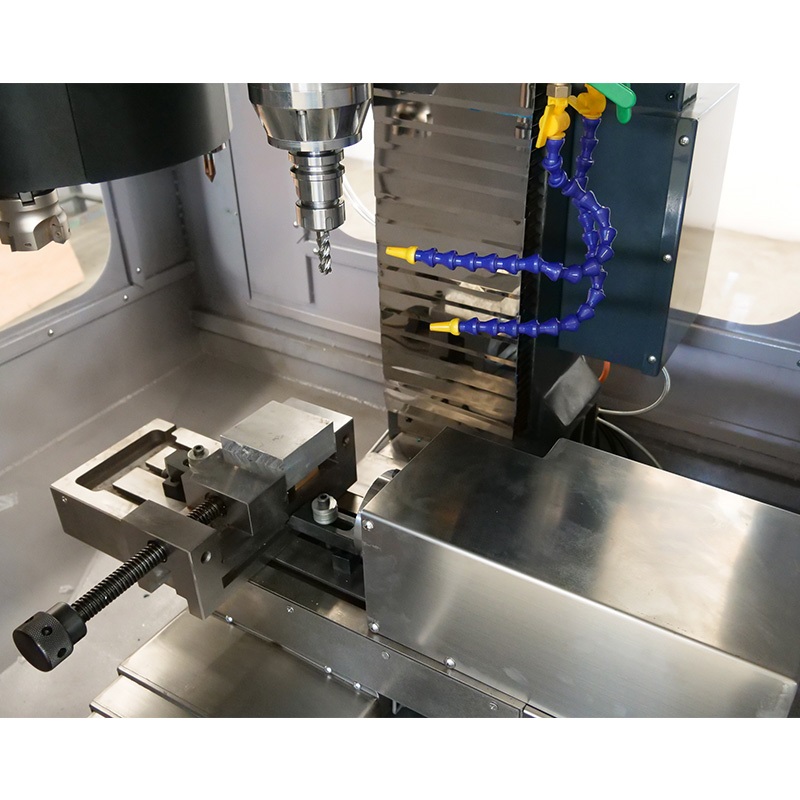

We also offer a full range of vices, collet chucks, and custom tooling packages to suit your specific applications—whether you’re prototyping, training, or running batch production.
Let us help you configure the perfect solution for your workshop or classroom.
