Vertical Turret Milling Machines.
Ajax Vertical Turret Milling Machines.
The Ajax range of vertical turret milling machines continues the tradition of quality and versatility, making them ideal for schools, technical colleges, and engineering workshops. Designed to meet both maintenance and production requirements, these machines are built for durability and ease of use.
All models are supplied with a fully interlocked swing-away guard for enhanced operator safety.
Priced from £ 12,950.00
- AJT200S & AJT300S feature universally tilting heads, capable of tilting 90° left and right, as well as front to back—ideal for complex angular machining.
- AJT400S & AJT500S offer left and right tilting only, providing robust performance for standard turret milling applications.
These machines are ergonomically designed, incorporating the latest engineering techniques and built to the highest standards of quality and precision. Key features include exceptional reliability, accuracy, and rigidity, making them ideal for demanding applications.
Where can I buy a turret milling machine ? Ajax Machine Tools supply a range of turret milling machines.
All models in the range are equipped with infinitely variable spindle speeds, allowing operators to efficiently machine a wider variety of modern and sophisticated materials with greater control and flexibility.
Speak to one of our experienced engineers today, or email us at
📧 sales@ajax-mach.co.uk
Specifications.
| Model | AJT 200S | AJT 300S | AJT 400S | AJT 500S |
| Working Surface (mm) | 1,066 x 230 | 1,270 x 254 | 1,374 x 254 | 1,470 x 300 |
| Tee-slots, number & size (mm) | 3 x 16 | 3 x 16 | 3 x 16 | 3 x 16 |
| Tee-slot centres (mm) | 63 | 63 | 63 | 80 |
| Long travel (mm) | 640 feed | 700 feed | 700 feed | 1,120 feed |
| Cross travel (mm) | 305 feed (opt) | 400 feed (opt) | 400 feed (opt) | 320 feed |
| Vertical travel (mm) | 406 feed (opt) | 406 feed (opt) | 406 power | 390 power |
| Distance spindle nose to table (mm) | 57-463 | 40-446 | 40-430 | 85-535 |
| Distance spindle centre to column (mm) | 213-533 | 200-680 | 110-580 | 350-820 |
| Overarm travel (mm) | 320 | 530 | 470 | 475 |
| Spindle | ||||
| Quill feeds | 0.04/0.08/0.15 mm/rev | 0.04/0.08/0.15 mm/rev | 0.04/0.08/0.15 mm/rev | 0.35/0.7/0.14/mm/rev |
| Quill Travel (mm) | 127 | 127 | 127 | 140 |
| Spindle taper | R8 or ISO30 | R8 or ISO30 | ISO40 | ISO40 |
| Speed range (variable) | 50-3,750 rpm | 66-3,150 rpm (inverter) | 50-3,750 rpm (inverter) | 60-3,000 rpm (inverter) |
| Motor Power | 3Hp (2.2kW) | 3Hp (2.2kW) | 5Hp (3.7kW) | 5Hp (3.7kW) |
| Swivel | ||||
| Swivel angle left to right | +/- 90 Deg | +/- 90 Deg | +/- 90 Deg | +/- 90 Deg |
| Swivel angle front to back | +/- 45 Deg | +/- 45 Deg | +/- 45 Deg | 0 |
| Ram Swivel | 360 Deg | 360 Deg | 360 Deg | 360 Deg |
| Weight & Dimensions | ||||
| Power Supply | 415v 3ph | 415v 3ph | 415v 3ph | 415v 3ph |
| Machine Dimensions (cm) | 145x140x210 | 165x175x213 | 168x145x228 | 207x202x235 |
| Weight (kg) | 900 | 1,200 | 1,300 | 1,950 |

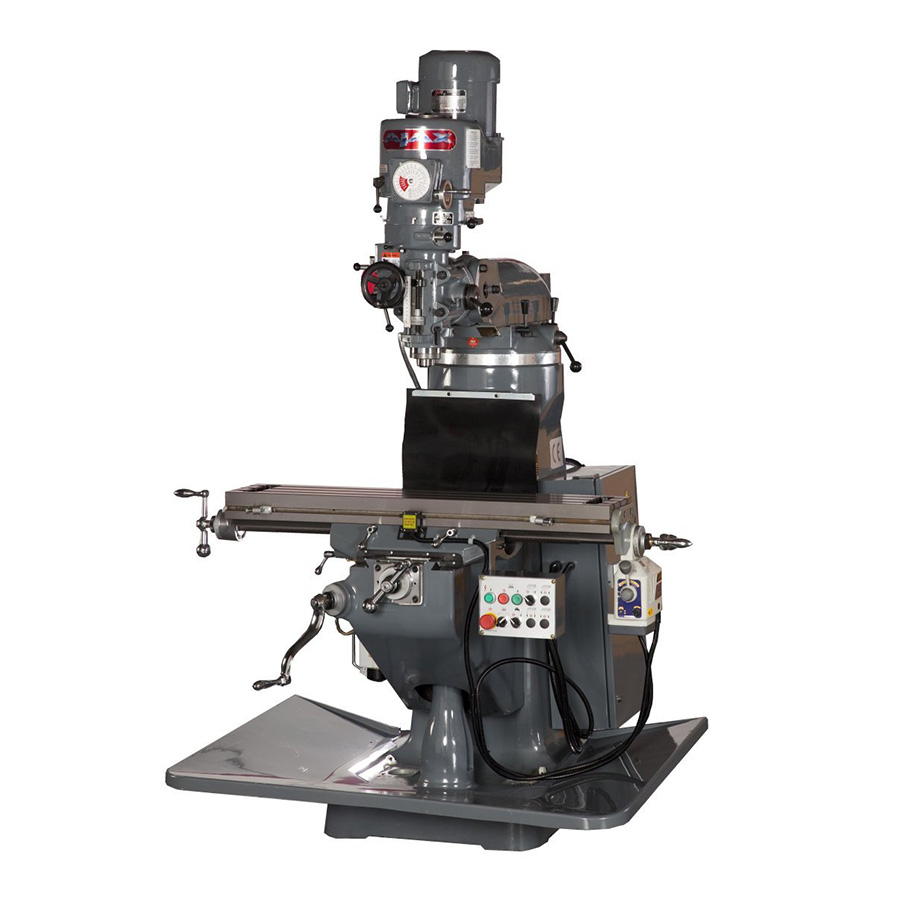

AJT200S
Main features:
- 3 Axis SINO Digital Readout Display.
- Braked Spindle Motor to stop quickly

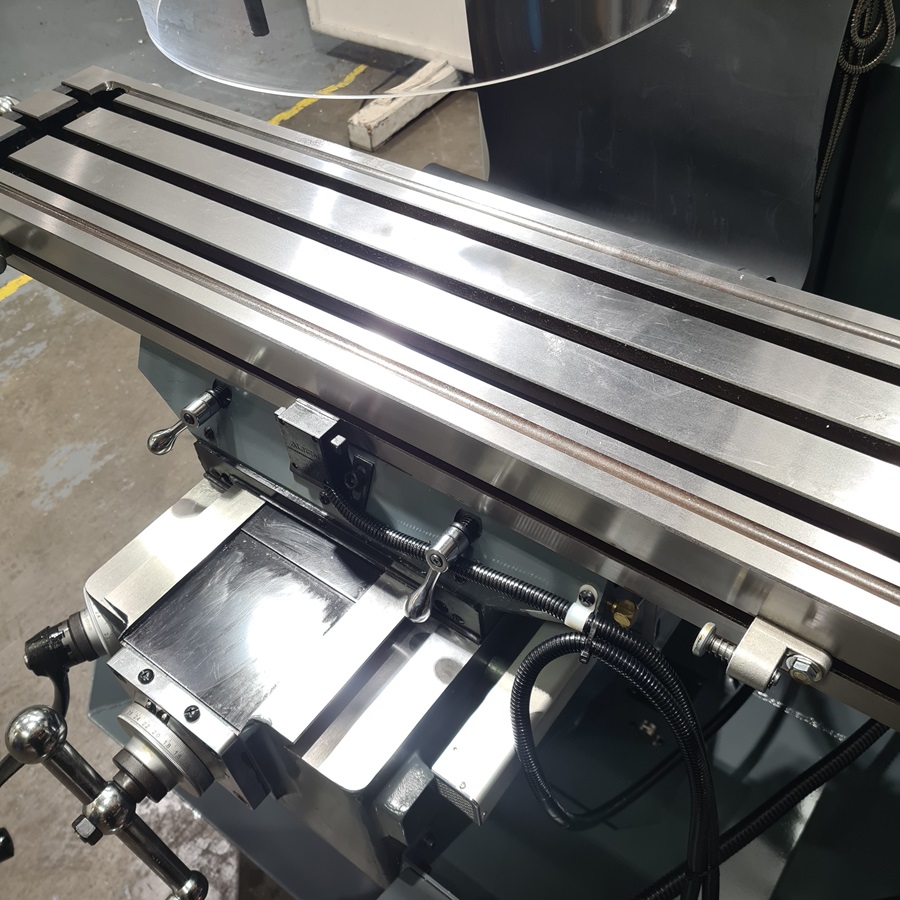

- Hardened & Ground table top.
- Hardened dovetail slideways.

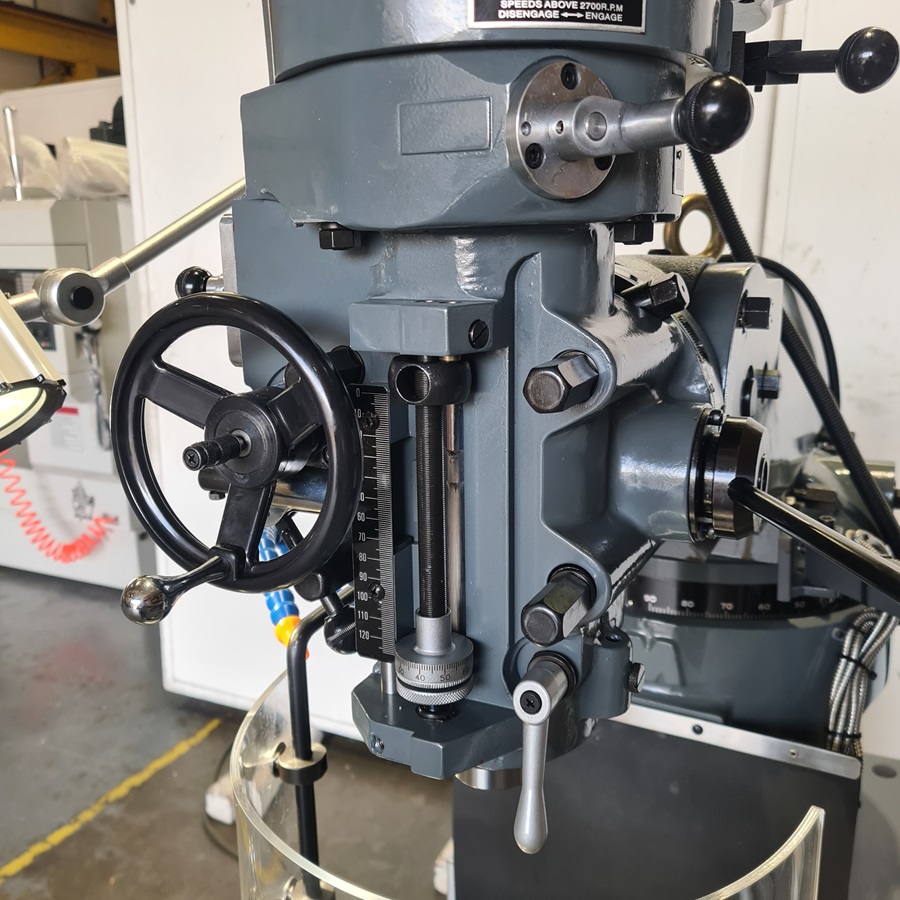

- Head tilting left & right 180 degrees.
- Head tilting front to back 90 degrees.
- Align Servo power feed to X-axis.
- One shot lubrication.
- Interlocking milling cutter guard.
- LED work light.
- Coolant system.
- Swarf tray.
- Toolbox and manual.
- 3hp braked main motor.
- CE / CA mark.

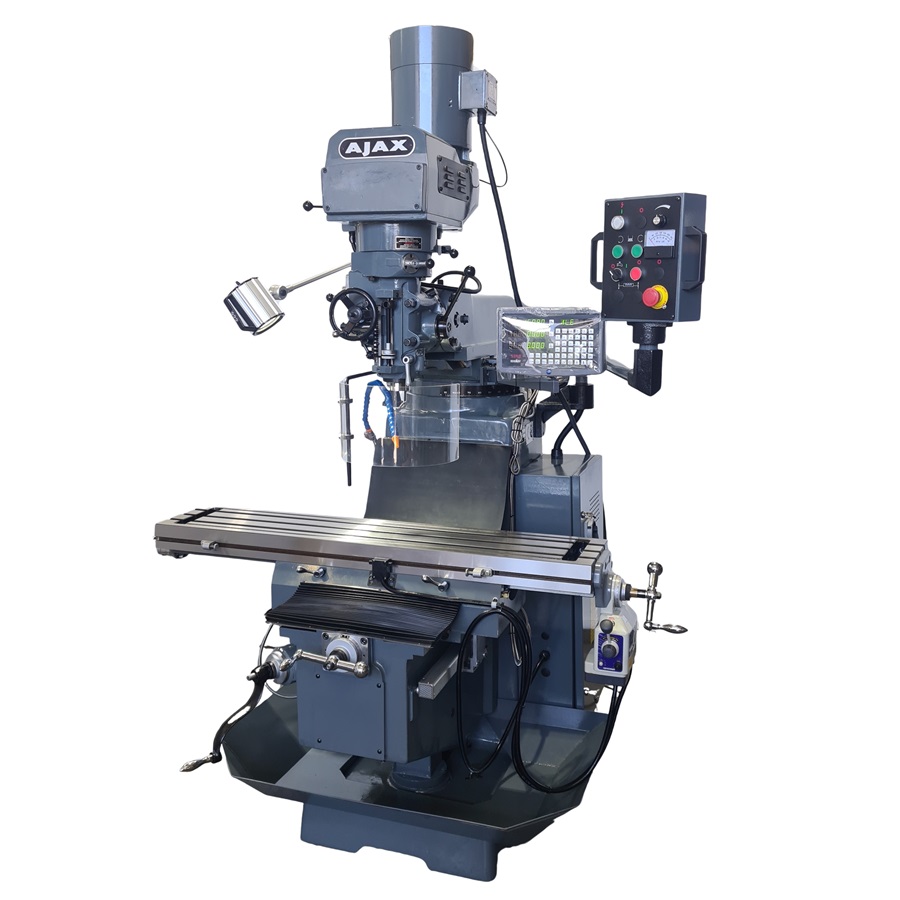

AJT300S
Main features:
- 3 Axis SINO Digital Readout Display
- Hardened & Ground table top.
- Hardened and ground square slideways.
- Turcite B antifriction coated slides.
- Head tilting left & right 180 Degrees.
- Head tilting front to back 90 degrees.
- Align Servo power feed to X-axis.
- Wide knee for table support.
- One shot lubrication.
- Interlocking milling cutter guard.
- LED work light.
- Swarf tray.
- Coolant system.
- Toolbox and manual.
- Inverter driven 3hp braked main motor.
- Turcite coated slides.
- CE / CA mark.

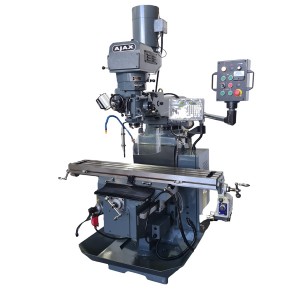

AJT400S
Main features:
- 3 Axis SINO Digital Readout Display
- Hardened & Ground table top.
- Hardened and ground square slideways.
- Turcite B antifriction coated slides.
- Head tilting left & right 180 Degrees.
- Head tilting front to back 90 degrees.
- Align Servo power feed to X-axis.
- Wide knee for table support.
- One shot lubrication.
- Interlocking milling cutter guard.
- LED work light.
- Swarf tray.
- Coolant system.
- Toolbox and manual.
- Inverter Driven 5hp braked motor.
- CE / CA mark.

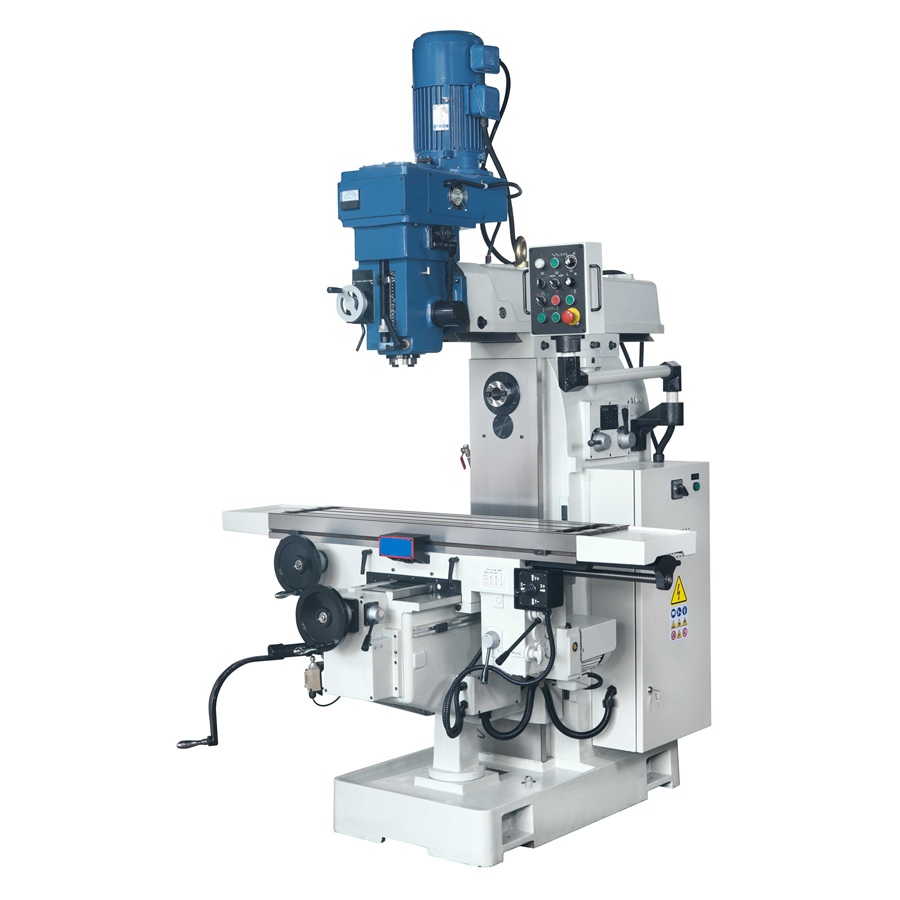

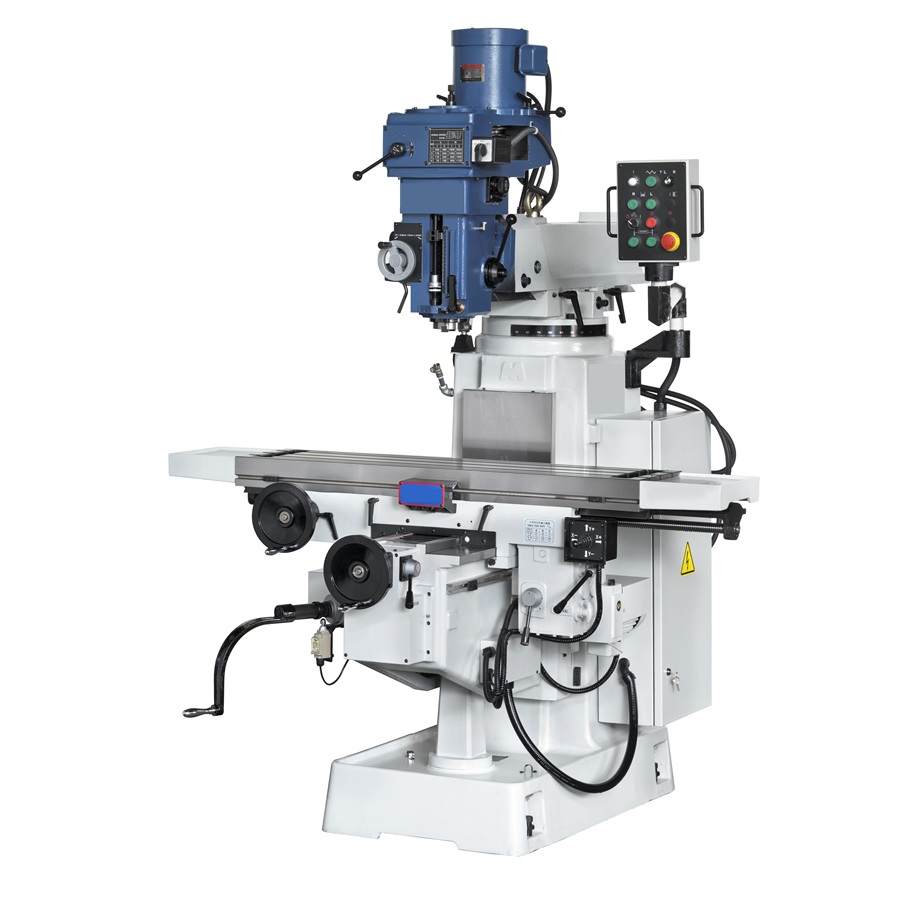

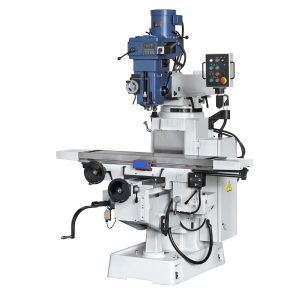

AJT500S
Main features:
- 3 Axis SINO Digital Readout Display
- Hardened & Ground table top.
- Hardened and ground square slideways.
- Head tilting left & right 180 Degrees.
- Wide knee for table support.
- Fully automatic lubrication.
- Interlocking milling cutter guard.
- LED work light.
- Swarf tray.
- Pendant control.
- Coolant system.
- Toolbox and manual.
- Mechanical power feeds to X & Y axis.
- 5hp braked main motor.
- Turcite B coated slides.
- Power elevation to knee.
- CE / CA mark.
Optional Extras (all machines):
- Servo-type power feeds in y-axis. (Not AJT500S)
- 52 piece clamping kit.
- 100, 150, 200 mm machine vices.
- Collet holder with collets.
- Tooling packages.
- Boring heads.
- Right angle heads.
- Slotting attachments.
- Stand on coolant tray.
The first machine built in this style was the Bridgeport BR2J2 turret mill and thus the turret mill was born. Many versions followed and the original design was improved as with our machines.
Delivery, Installation & Training – We’ve Got You Covered
Our trusted delivery partners can transport and offload your machine using a variety of methods tailored to your site—whether that’s with a Versa-Lift or machine skates for precise positioning.
Once the machine is in place, our fully trained engineers will:
- Level and commission the machine
- Ensure everything is running correctly and safely
- Provide comprehensive training on operation and basic maintenance
From delivery to production, we support you every step of the way.
