Universal Horizontal Milling Machines.
Ajax Universal Horizontal Milling Machines
The Ajax range of universal horizontal milling machines—inspired by the legendary No.1, No.2, and No.4 models—are built to meet the demands of both maintenance and production environments. Robust, reliable, and engineered to last, these machines are designed by engineers, for engineers, continuing the tradition of quality and durability that Ajax is known for.
Precision Engineering Meets Operator Comfort
The Ajax UM range of universal horizontal milling machines is ergonomically designed, combining the latest engineering techniques with the highest standards of quality. With sequential speed ranges, these machines allow operators to efficiently machine a wide variety of advanced and sophisticated materials. All models are CE & CA Marked, ensuring compliance with international safety and performance standards.
Specifications.
AJUM Range Variants for Greater Flexibility

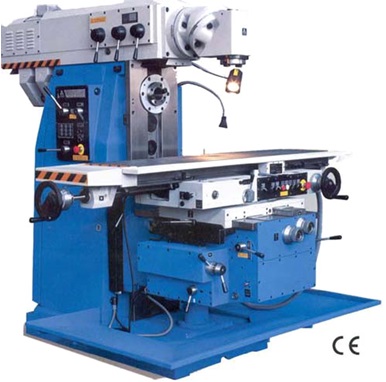

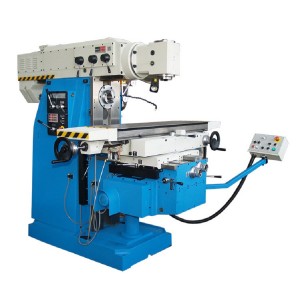

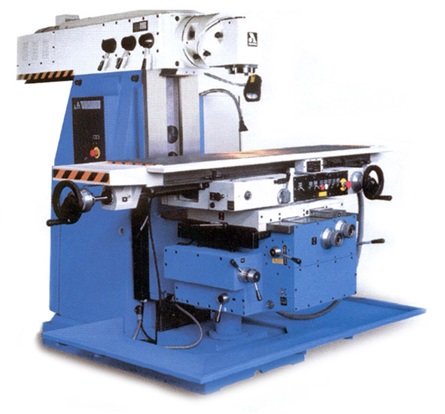

The standard AJUM is a robust horizontal milling machine. The AJUM-R builds on this by incorporating a universal milling head at the end of the ram, along with an integrated gearbox within the ram for added versatility. For maximum capability, the AJUM-RH combines both a horizontal spindle and a ram-mounted universal spindle, making it ideal for complex and multi-angle milling operations.
Reliable and Safe Electrical System
To ensure operator safety, the electrical control panel is equipped with a safety isolating switch, which must be in the ‘OFF’ position before the panel can be accessed. The system uses high-quality contactors and relays throughout, all of which are readily available worldwide for easy maintenance and replacement.

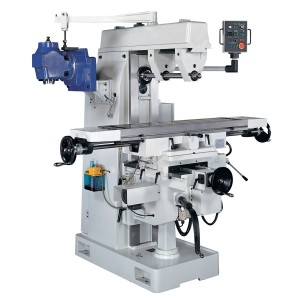

AJUM 200S.
Compact Yet Fully Featured
When space is limited, the smallest machine in the range still delivers impressive functionality. It features a swivel table, gearbox-driven table feed, and servo feed to the cross and rapid vertical axes. As standard, it also includes coolant, an arbor with two supports, a 2-axis DRO, and a swivel vertical head, making it a powerful and compact solution for any workshop.

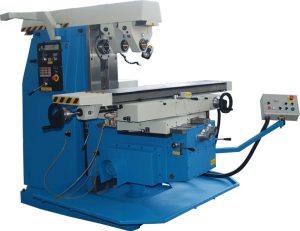

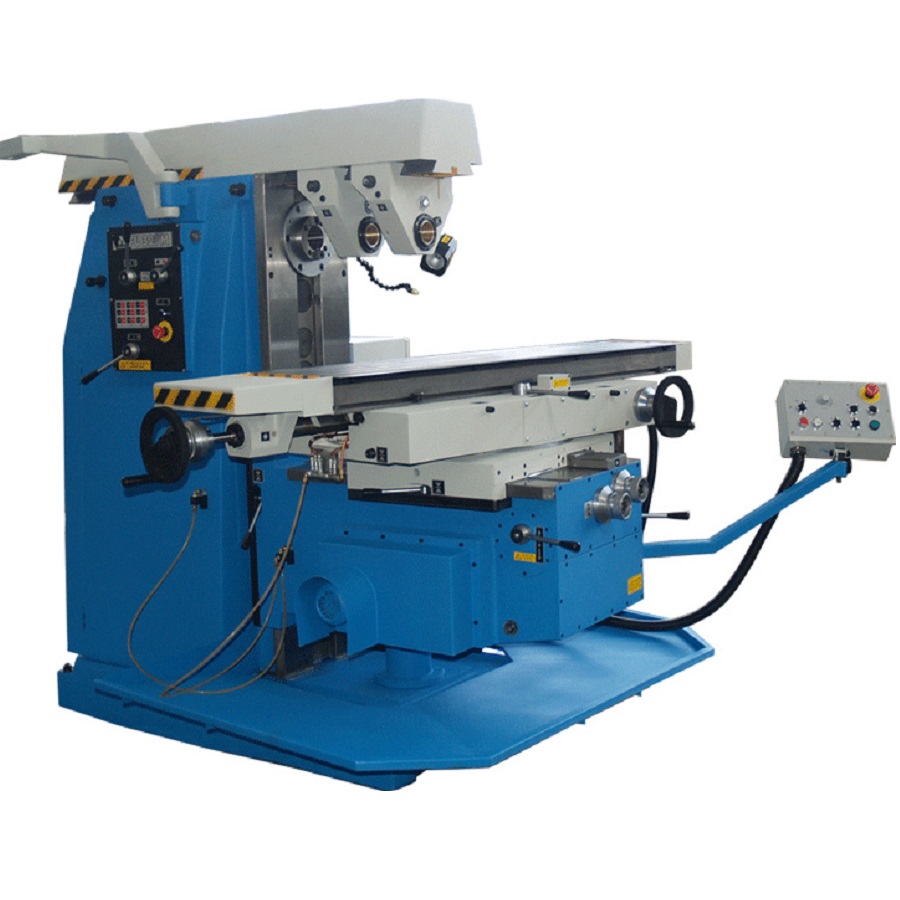

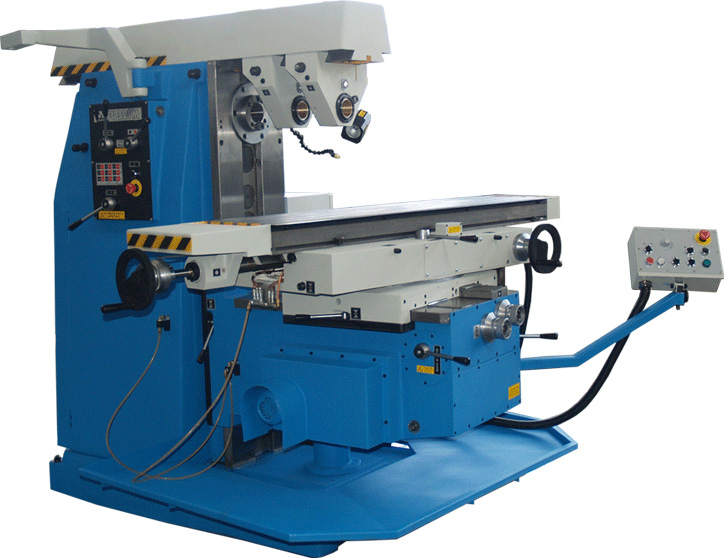

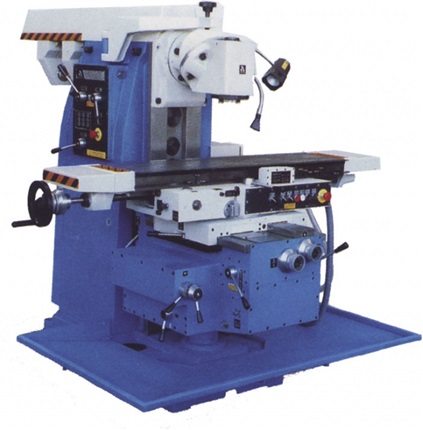

AJUM 320 & 400.
High-Quality Milling You Can Rely On
If you’re looking for true high-quality milling machines, this range is the ideal choice. Each model features a universal swivel table, horizontal spindle, and arbors, offering flexibility, precision, and performance for demanding machining tasks.
Optional Extras.
- Universal Milling head (all models not R type).
- Slotting Head.
- 2 or 3 axis DRO systems.
- Clamping Kits.
- Machine vices 100, 150 or 200mm.
- Dividing head.
- Collet holder with collets.
Horizontal Universal Milling Machine Gallery.
Delivery, Installation & Training – We’ve Got You Covered
Our trusted delivery partners can transport and offload your machine using a variety of methods tailored to your site—whether that’s with a Versa-Lift or machine skates for precise positioning.
Once the machine is in place, our fully trained engineers will:
- Level and commission the machine
- Ensure everything is running correctly and safely
- Provide comprehensive training on operation and basic maintenance
From delivery to production, we support you every step of the way.
📞 Get in touch to arrange delivery and installation.
