CNC Horizontal Boring Milling Machines

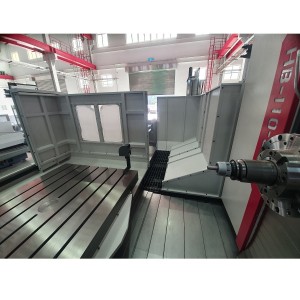

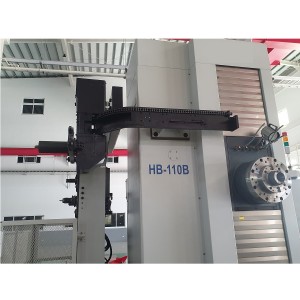

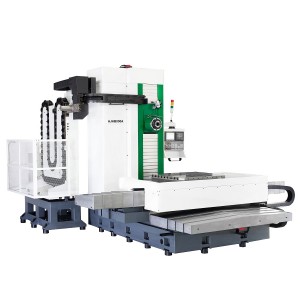

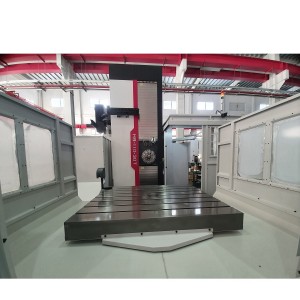

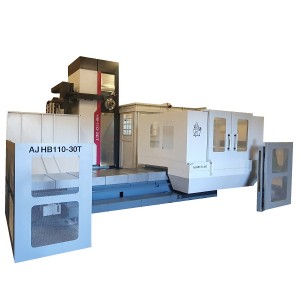

Ajax AJHB110-20T CNC Boring Mill

The Ajax 5 Axis CNC Horizontal Boring Milling Machines is an excellent package allowing milling & boring on 4 sides of the job in 1 setup speeding up production & giving more accuracy.

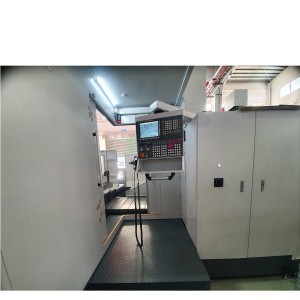

Features include Fanuc 0i MF control with Manual guide i CNC rotary table with locking pin at 90 deg, linear scales to give very high precision, pendant control, telescopic slideway covers, automatic tool changer with 60 tools, automatic, high power spindle motor & heavy duty construction.

High Precision Calibrated with Renishaw laser

All are machines are high precision calibrated using a Renishaw laser to give us super high precision, we then check this and all the alignments with the Renishaw Ballbar system which checks the machine while it is performing a circular move in 2 axis.

Specification

Ajax AJVBM, AJHBM & AJHB Manufacturing Facillity

Accuracy

Accuracy is very important here at Ajax we are one of very few companies in the UK who have a Renishaw XL80 laser measurement machine. It can measure down to a Nano of movement which is a 1000’th of a Micron which is 1000’th of a Millimetre. So we then use this data to calibrate the machine down to very high accuracy. But we can do this on your site if required and re do this on an annual basis to keep your machine accurate. Our normal results get machines over the entire working envolope down to less than +/- 0.002.

Most of our competitors are way over this and cannot test it or prove it.

Instalation

With Ajax engineers offering the best insatlation your machine will perform to the best accuracy and power that it can. CNC Horzontal Borers are a must in any big machine shop to make the hard jobs easier.

In production this machine can be set up with a cube fitted to the table so you can vertically mill 4 jobs in one setup and even work on the edges to produce quicker and easier. Give us a call or drop us an email to see how we can help.
