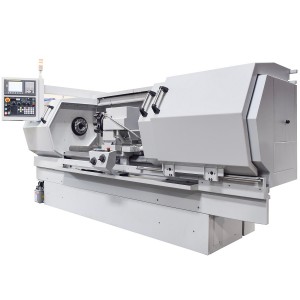

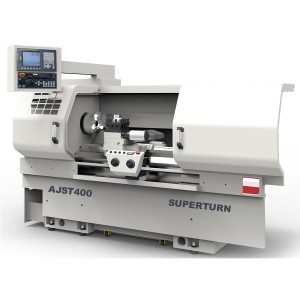

Ajax Superturn Flat Bed CNC Teach Lathes

The AJAX Superturn Manual CNC Lathes Range replaces the previous Evolution series, providing enhanced weight and durability. These machines are equipped with the Fanuc 0i TF Plus CNC control, allowing them to operate as manual lathes with electronic handwheels, as well as a simple DRO measuring system. Produced with environmental sustainability in mind, the factory harnesses solar energy from its roof to power the entire operation, including the casting facility. Our lathes come with the Turnmate i touchscreen software, which is designed for ease of use, featuring intuitive touch screen cycles. New users can quickly grasp the conversational programming, making it the most user-friendly lathe control system available today.

For one-off and small batch production, the Super Turn can be conversationally programmed using flexible electronic turning cycles. It is quick, convenient, and does not require CNC training to use these electronic cycles.

For complicated shapes and batch production, full ISO G Code programming is available on the Fanuc 0i TF Plus Turn Mate i control. Other control options include the Fagor 8058 Elite Conversational control and the Siemens 828D with Shopturn. CE and CA marked.

Features include NSK spindle and thrust bearings, Turcite on hardened and ground slides, automatic lubrication, a portable handwheel (MPG), Hiwin ballscrews, and high-power LED lighting.

For more information about control systems, please click here.

Specifications

Turning has become Superturning

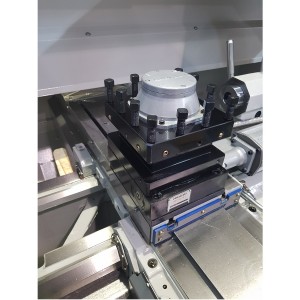

The AJAX Superturn series of machines integrates the best features of traditional turning, electronic cycle turning, and full CNC turning—all within a single unit. This versatile machine can function as a manual lathe equipped with electronic hand-wheels, while its control system serves as a straightforward DRO measuring tool. Ideal for one-off projects and small batch production, the Superturn allows for programming through adaptable electronic turning cycles that are user-friendly and do not necessitate CNC training. Users can easily create tapers, radii, grooves, multi-point profiles, and screw threads by responding to simple prompts on the Fanuc display. These electronic cycles can be interconnected to form a comprehensive electronic program. Additionally, the AJAX Superturn machines feature fully enclosed guarding compliant with CE standards, an automatic 4-way indexing tool post, automatic speed adjustments, and a modern Fanuc touch screen control. Programs can be conveniently uploaded or downloaded via the USB port or saved directly to a PMCIA card. The range begins with a 200 mm centre height and extends to 300 mm, with bed lengths from 750 mm to 2,000 mm. Spindle speeds vary according to machine size, but all models come standard with CSS. All axis and spindle drives are powered by Fanuc, ensuring dependable performance and durability. Control options include the Fanuc 0i TF Turn Mate i, Fanuc 0i TF Manual Guide i, Siemens 828D Shopturn, or the Fagor 8058. This series succeeds the Evolution lathes, which were in production for 15 years, and the Quick Turn, which had a shorter run. Looking back over two decades, we also introduced the Premier lathes, the first of their kind featuring the older Fagor 800T and later the Fagor 8055T. Our extensive experience in this machine category is well-established.

Standard Features.

Touch screen Fanuc Turn Mate i CNC control.
Siemens 828D With Shopturn CNC Control..
Interlocked guarding & chip collection system.
Turcite B coated Hardened & ground slides to 400-450 HB.
Coolant equipment.
Automatic lubrication of bed ways.
Electronic hand-wheels or X & Z Axes.
Feed override control.
Digital Fanuc or Siemens AC Feed drives & Servo motors.
Digital Fanuc or Siemens AC spindle Motor.
High power LED lighting.
Fixed centres & reducing bush.

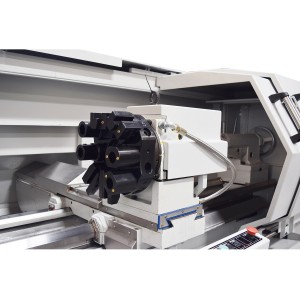

4 or 8 station automatic turrets.
Instruction Manual.

Options.

3 & 4 Jaw chucks.
Fixed & travelling steadies.
Live centres.
Face plates.
Manual Guide i (Fanuc).
Siemens 828D. Shopturn control.
Fagor 8058 elite control.

Accuracy

At Ajax, precision is paramount. We proudly stand out as one of the few companies in the UK equipped with a Renishaw XL80 laser measurement machine, capable of detecting movements as minute as a nanometre—equivalent to one-thousandth of a micron or one-thousandth of a millimetre. We utilize this precise data to calibrate our machines to exceptional accuracy. This calibration can be performed on-site if needed, and we recommend annual recalibrations to maintain optimal performance. Typically, our results ensure that machines operate within an impressive tolerance of less than +/- 0.002 across their entire working range. In contrast, many of our competitors fall short of this standard and lack the means to verify their claims.

Ajax turning the world around.

Delivery & Installation

Our delivery services offer multiple methods to transport and unload your machine. We can either drive it in using a versa lift or slide it into place. After positioning, our skilled engineers will ensure it is levelled and commissioned. Once completed, we will provide training on how to operate it.
