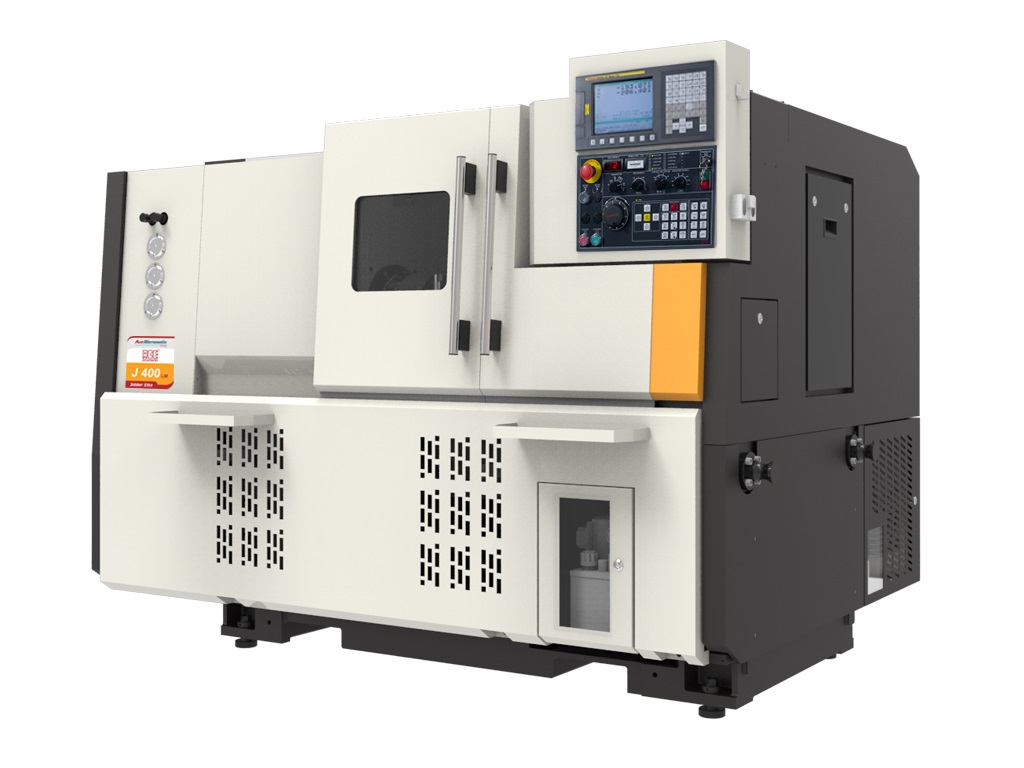

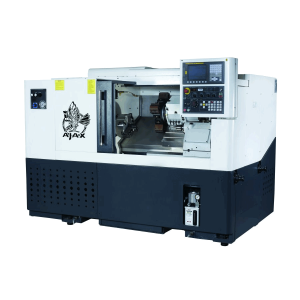

Ajax Ace Slant Bed CNC Lathes

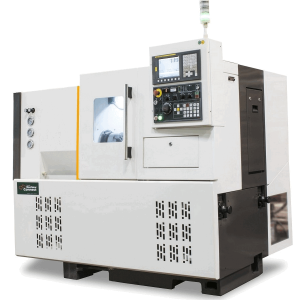

Ajax AJSB170 Slnat Bed CNC Lathe

The Ajax Ace Slant bed CNC Lathes are designed to be strong powerful & reliable, with a top Fanuc 0i TF control, at an affordable price to help produce more and earn more. New models available with Y axis & sub spindle.

CNC Control Options

Fitted with industry leading Fanuc 0i TF CNC or Siemens 828D Shopturn controls systems giving ultimate control & reliability, the Fanuc can be upgraded to the Manual Guide i version with fully conversational control and full 3D graphics to make eve the hardest job easy.

Also featuring a solid cast bed and base with inset hardened steel guide ways to make the Ace is a powerfully stable machine, which can take large cuts and perform well with any material.

All are machines are high precision calibrated using a Renishaw laser to give us super high precision, we then check this and all the alignments with the Renishaw Ballbar system which checks the machine while it is performing a circular move in 2 axis.

Renishaw logo

Specifications

Features Include

  • Solid cast construction with inset hardened steel guide ways running on turcite.
  • High power stock removal

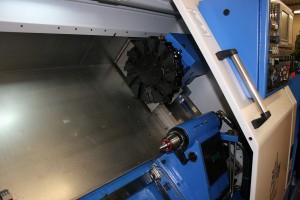

    Multi station turrets
  • Fanuc 0i TF control
  • Kitagawa Power chucks
  • Powered tailstock
  • Swarf conveyor
  • Parts catcher

Options

  • Manual guide i
  • Live tooling
  • bar feed
  • Siemens 828D Shopturn

Standard Features

  • Fanuc 0i TF CNC control
  • Automatic multi station bi-directional turrets
  • Fully enclosed guarding & chip collection system
  • Swarf conveyor, coolant equipment
  • Automatic lubrication of bed ways
  • Electronic hand-wheel for X & Z Axes
  • Variable speed to include constant surfacing speed
  • Fanuc AC spindle drive
  • Fanuc Digital Feed drives & motors
  • Feed override control
  • High power lighting
  • Fixed centres & reducing bush
  • Hardened steel inset guideways
  • Instruction manual

Options

  • Bar feed systems
  • Live tooling options with C axis
  • CAD CAM
  • Siemens 828D control

Accuracy

Accuracy is very important here at Ajax we are one of very few companies in the UK who have a Renishaw XL80 laser measurement machine. It can measure down to a Nano of movement which is a 1000’th of a Micron which is 1000’th of a Millimetre. We then use this data to calibrate the machine down to very high accuracy. We can do this on your site if required and re do this on an annual basis to keep your machine accurate. Our normal results get machines over the entire working envolope down to less than +/- 0.002 most of our competitors are way over this and cannot test it or prove it.

The range of Ace Slant bed Production lathes are designed to meet the new demands of industry. Featuring top FANUC 0i TF control with the optional Manual Guide, the Ace can be programmed to produce any complicated component.
